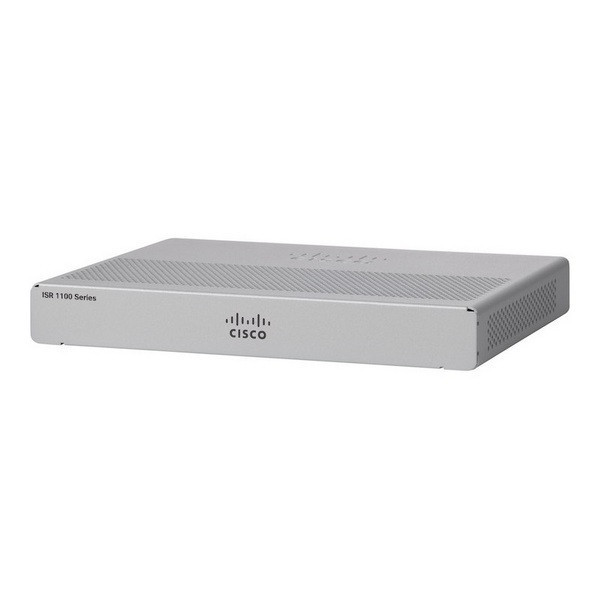

Маршрутизатор Cisco C1113-8PM

Маршрутизаторы Cisco 1100 серии с программным обеспечением Cisco IOS XE служат обеспечение объедения WAN, комплексной безопасности, проводного и беспроводного доступа в одну, высокопроизводительную платформу.
Cisco 1100 серия отлично подходит для развертывания на малых и средних предприятиях.
Технические характеристики маршрутизатор Cisco C1113-8PM:



Model


WAN


Wi-Fi


LAN switch


Integrated USB 3.0
console


Pluggable




GE


GE/SFP
combo


ADSL2/VDSL2+
or G.FAST or G.SHDSL


LTE Advanced (CAT6)


802.11ac


GE


PoE or PoE+




C1113-8PM


NA


1


1 G.FAST
(Annex M)


NA


NA


8


4


2


Yes


NA







Feature


Specification




Memory (default and maximum)


DRAM: 4 GB
Only C1111X-8P model have 8GB DRAM


Flash: 4 GB
Only C1111X-8P model have 8GB Flash




Console


Micro USB console (USB 3.0).




Mini-USB port (reserved)


Micro-USB port to support remote LTE diagnostics and monitoring tools (Qualcomm CAIT and Spirent UDM) (USB 3.0).




WLAN interfaces


Multiuser Multiple-Input Multiple-Output (MU-MIMO) allows transmission of data to multiple 802.11ac Wave 2– capable clients simultaneously to improve the client experience. Prior to MU-MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time, typically referred to as Single-User MIMO (SU-MIMO).
802.11ac Wave 2 with 2x2:2 MIMO technology uses two spatial streams when operating in SU-MIMO or MU-MIMO mode, offering 867-Mbps rates for more capacity and reliability than competing access points.
Flexible deployment through the Mobility Express solution is ideal for small to medium-sized deployments. Easy setup allows the 1100 Series (similar to 1815i) to be deployed on networks without a physical controller.




Maximum clients


Maximum number of associated wireless clients: 200 per Wi-Fi radio; in total 400 clients per access point.




Authentication and security


AES for Wi-Fi Protected Access 2 (WPA2).
802.1X, RADIUS AAA.
802.11r and 802.11i.




802.11ac


2x2 SU-MIMO/MU-MIMO with two spatial streams.
Maximal Ratio Combining (MRC).
20-, 40-, and 80-MHz channels.
PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz).
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx).
802.11 Dynamic Frequency Selection (DFS).
Cyclic Shift Diversity (CSD) support.




Software


Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 (8.8 for 1101 and 1109 Models) MR1 or later.




DSL interfaces


C1116 & C1117
Dying gasp.
ITU G.993.2 (VDSL2) and supported profiles: 8a, 8b, 8c, 8d, 12a, 12b, and 17a.
VDSL2 Vectoring.
ADSL Annex A and Annex B ITU G. 992.1 (ADSL), G.992.3 (ADSL2), and G.992.5 (ADSL2+).
ADSL Annex M G.992.3 (ADSL2) and G.992.5 (ADSL2+).
C1112 & C1113
G.FAST (spectrum up to 106MHz) Annex A, Annex B, Annex M and compatible with ADSL2/2+ and VDSL2.
ITU G.993.2 (VDSL2) and supported profiles: 8a, 8b, 8c, 8d, 12a, 12b, 17a, and 35b.
ITU G.9700/9701/997.2 G.FAST and supported profiles: 106a, and 106b.
C1118
G.SHDSL.




Inlin
